Features

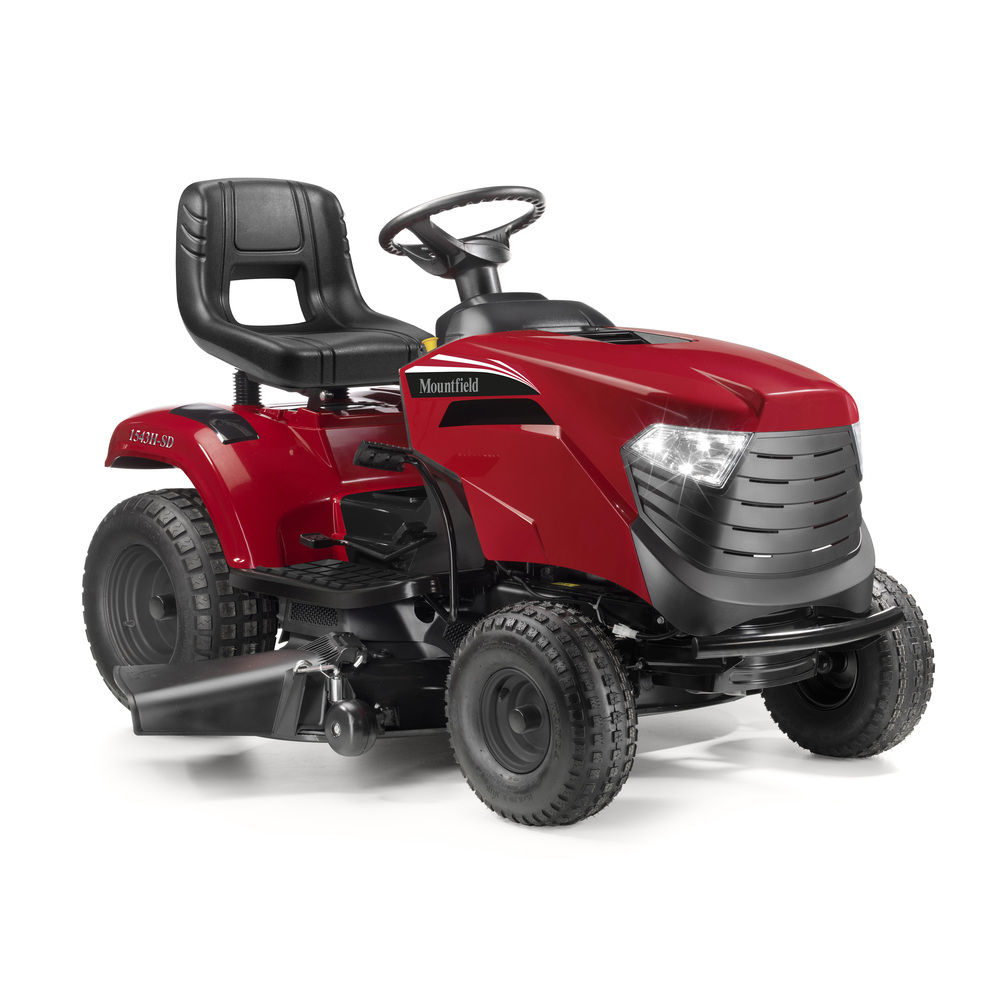

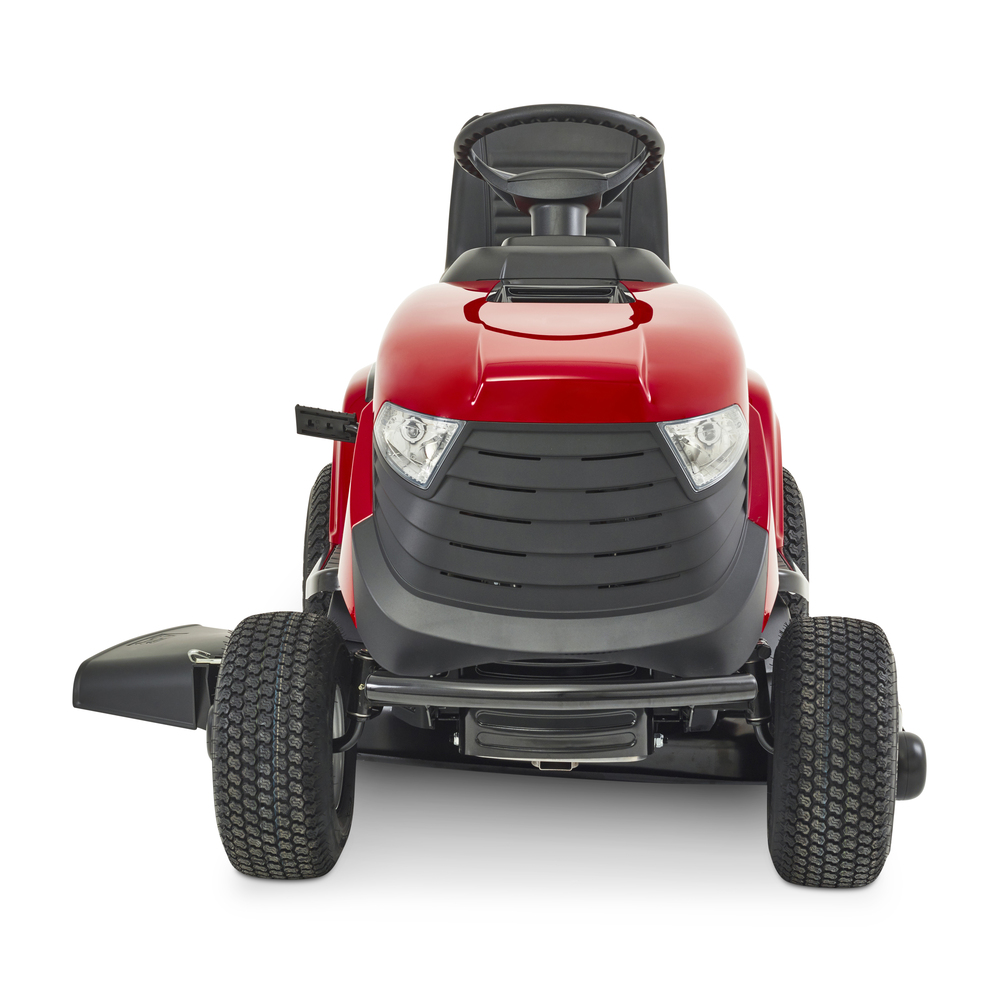

Mountfield 1543-SD Lawn Tractor Hydrostatic
Powered by a 452cc OHV single cylinder electric key-start engine
108cm cutting width
Hydrostatic transmission
7 Cutting height positions, 25 - 80 mm
Dedicated side-discharge garden tractor
Mulch plate and tow hitch included. Battery charger available separately
Specification
Mountfield 1543-SD Lawn Tractor Hydrostatic
Power
Power source: Petrol
Battery capacity: 18 Ah
Power: 8.4 kW
Engine Brand: STIGA
Engine model: ST 500 Powered by STIGA
Displacement: 452 cm³
Engine rotation speed: 2800 rpm
Battery Voltage: 12 V
Choke: Manual
Engine cooling: Air
Fuel tank capacity: 6 l
Suggested working area: 6000 m2
Cutting system
Minimum uncut radius: 65 cm
Cutting width: 108 cm
Reverse mowing: Yes
Reinforced cutting deck: No
Blade rotation: Untimed
Cutting height adjustment: Manual with lever
Cutting height positions: 7 positions
Cutting height range: 25 - 80 mm
Cutting height memo: No
Number of blades: 2
Blade type: Mulching
Additional cutting method: Mulching
Blade engagement type: Electric
Transmission
Transmission method: Pedal-operated
Transmission type: Hydrostatic
Equipment
Steering wheel: Mountfield ergonomic
Seat type: Mountfield classic
Seat adjustment: Screws
Dashboard: No
Front wheel size: 15x5.00-6
Rear wheel size: 18x8.50-8
Hour meter: No
Headlights: Conventional
Cruise control: No
Cast iron front axle: No
Bumper: Yes
Washing link: Yes
Storage compartment: Yes
Cup holder: Yes
Pivoting front axle: Yes
Antiscalp wheels: 2
Safety system: Seat with Safety Contact Breaker
Tools kit
Mulching kit: Included
Battery charger: Optional
Trailer hitch kit: Included
Overall dimensions
Pack weight: 207.5 kg
Product length: 1726 mm
Product width: 1315 mm
Product height: 1100 mm
Weight: 159 kg
Warranty: 5 Years (T&Cs Apply- Subject to Annual Service)
Premium Service
We provide the following benefits when buying this model.
* Delivered fully assembled and ready to use (many of our competitors send you a box of bits)
* Full - Pre Delivery inspection, in accordance with the Manufacturers instructions.
* Fully test all controls and make adjustments as required.
* Adjust and tune the engine as required to ensure optimum performance..
* The product is palletised and wrapped securely to ensure it arrives in pristine condition.
* Free technical help, if there is any aspect of the product the you are un-sure about or there are any problems, we only a phone call away.
Delivery
We will contact you to arrange delivery and do our best to arrange delivery on a convenient day.
DELIVERY ONLY AVAILABLE WITHIN 60 Miles of Leeds (LS16)
After Sales
In the unlikely event that a fault developes on you machine, we will make arrangements for warranty repairs to be carried out as soon as possible.
Trailer Details
This Steel Dump Trailer is ideal for unloading soil, gravel and sand. It has a capacity of 500lbs and the trailer bed measures 148cm x 79cm x 68cm. It features a removable tailgate that aids loading and unloading and also easily converts into a flat-bed trailer with out the need for tools. Suitable to use with all makes of lawn tractor.
Specification
Warranty 1 year
Bed Dimensions 148cm x 79cm 68cm
Capacity Up to 500lbs/227kg
Tyres 13"/400 x 6 off-road pneumatic tyres
Suitable for most Ride on Lawn Tractors with a Tow Hitch.
