Features

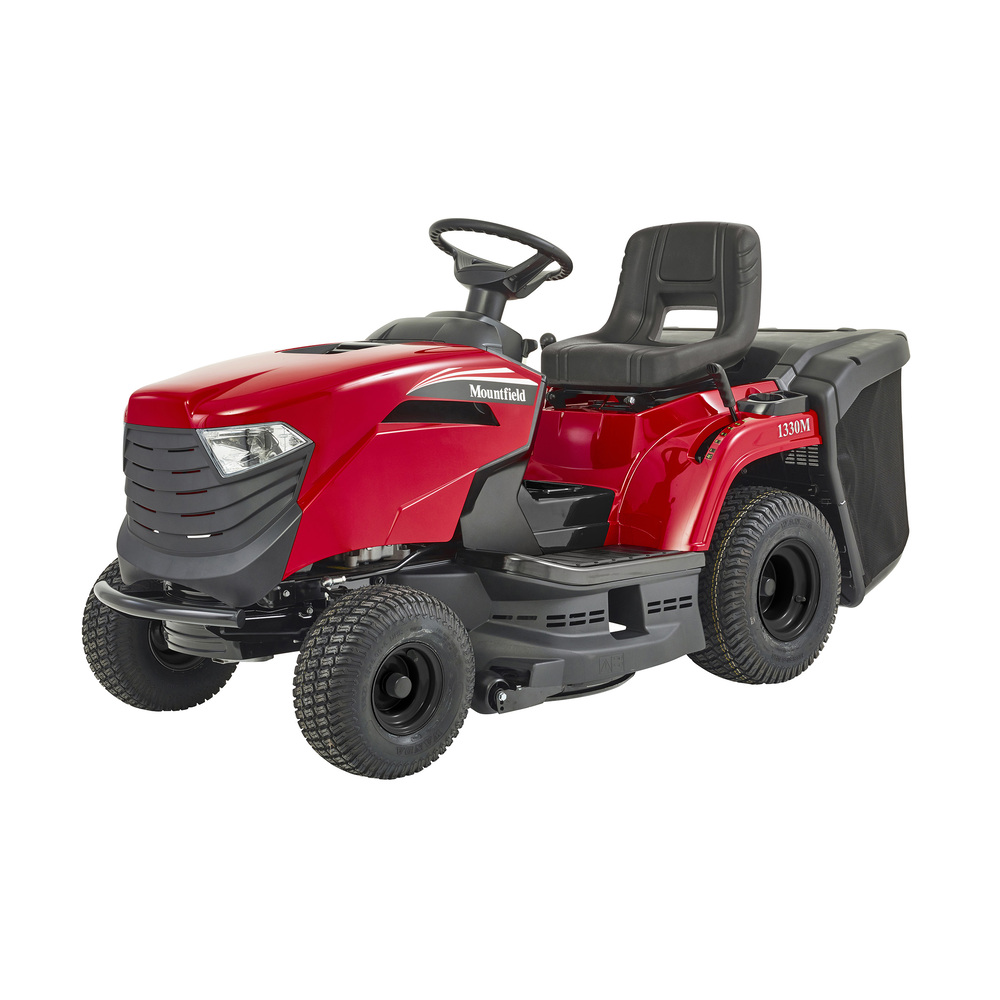

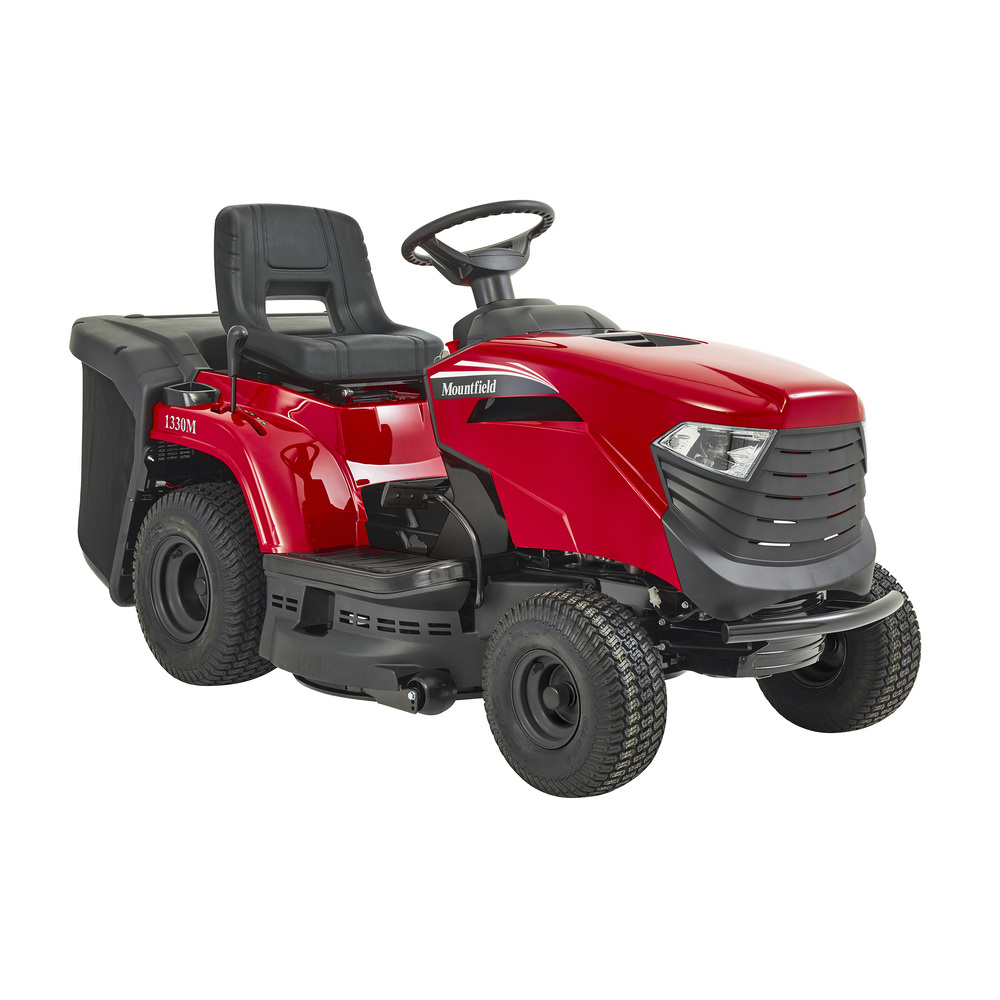

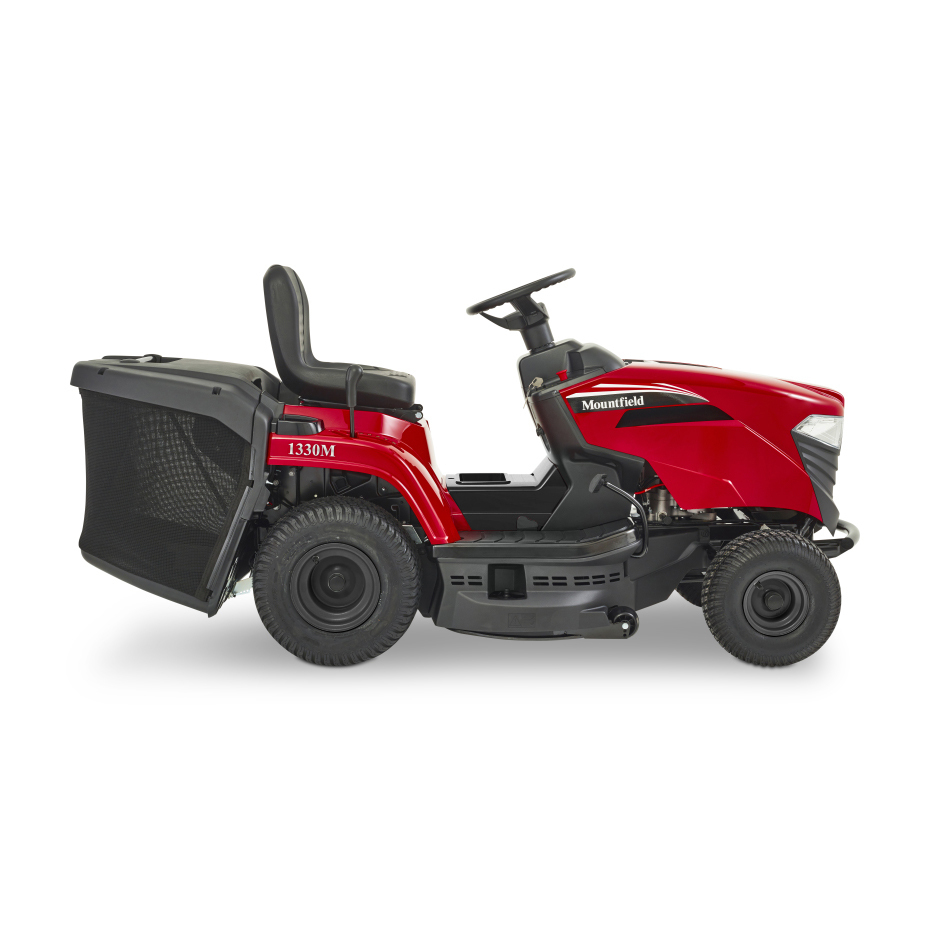

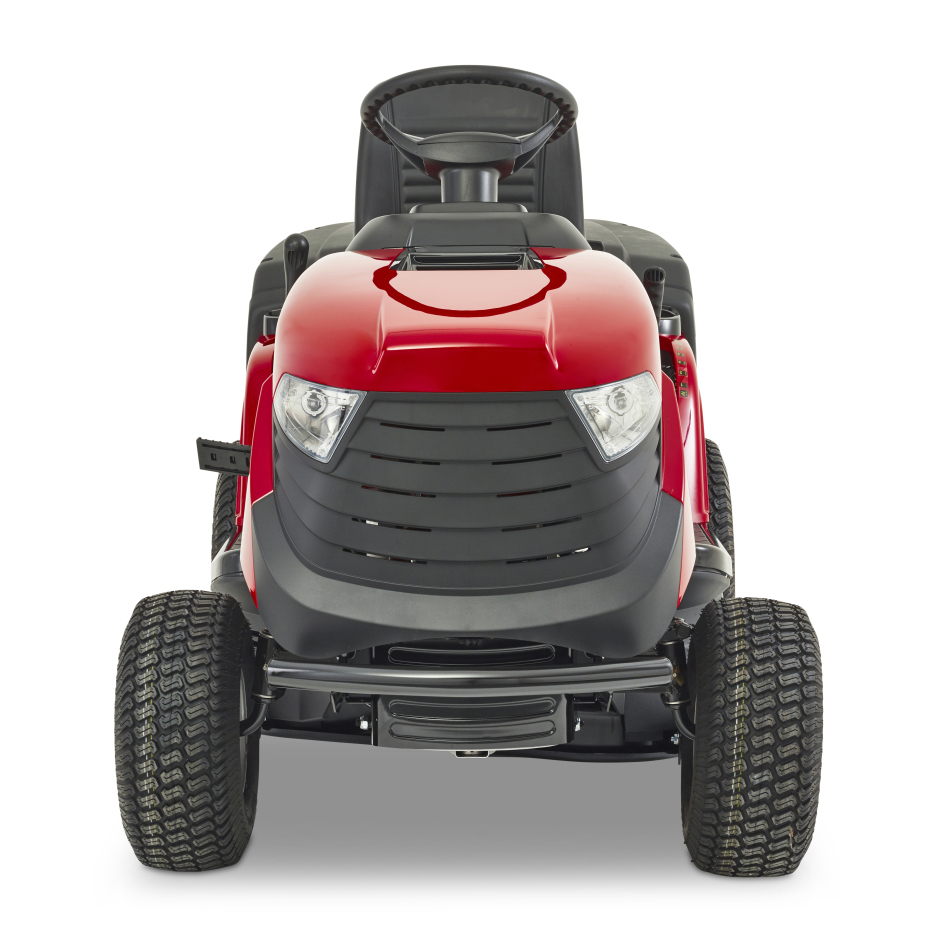

Mountfield 1330M Lawn Tractor 84cm
Powered by STIGA ST400 414cc engine
84cm cutting width
Manual transmission with 5 forward gears and 1 reverse gear
7 Cutting height positions, 25 80 mm
200-litre grass collector
Mulch plug and tow hitch included. Battery charger available separately
Specification
Mountfield 1330M Lawn Tractor 84cm
Power
Power source: Petrol
Battery capacity: 18 Ah
Power: 6.3 kW
Engine Brand: STIGA
Engine model: ST 400 Powered by STIGA
Displacement: 414 cm³
Engine rotation speed: 2400 rpm
Battery Voltage: 12 V
Choke: Manual
Engine cooling: Air
Fuel tank capacity: 6 l
Suggested working area:3500 m2
Cutting system
Minimum uncut radius: 80 cm
Cutting width: 84 cm
Reverse mowing: Yes
Blade rotation: Untimed
Cutting height adjustment: Manual with lever
Cutting height positions: 7 positions
Cutting height range: 25 - 80 mm
Number of blades: 2
Blade type: Winged
Additional cutting method: Rear discharge, Mulching
Blade engagement type: Electric
Transmission
Number of gears: 5 forward + 1 reverse
Transmission method: Lever-operated
Transmission type: Mechanical
Equipment
Collector emptying: Manual
Collector capacity: 200 l
Steering wheel:Mountfield ergonomic
Seat type: Mountfield classic
Seat adjustment: Screws

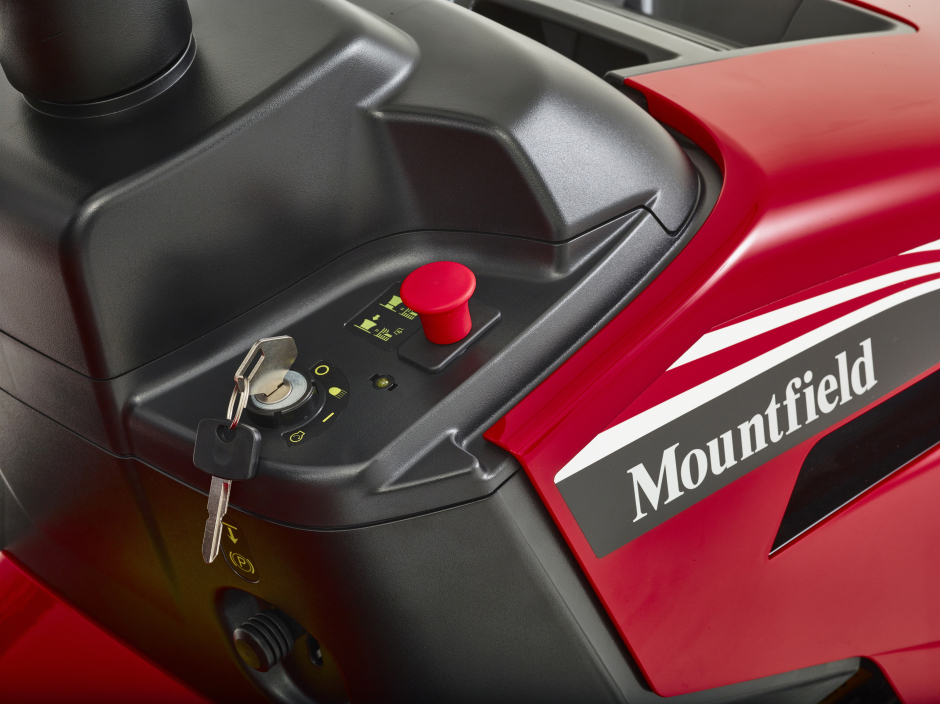

Dashboard: Yes with LED
Front wheel size: 13x5.00-6
Rear wheel size: 18x8.50-8
Hour meter: No
Headlights: Conventional
Cruise control: No
Bumper: Yes
Washing link: Yes
Collector type: Textile
Storage compartment: Yes
Cup holder: Yes
Pivoting front axle: Yes
Antiscalp wheels: 2
Safety system: Seat with Safety Contact Breaker
Tools kit
Mulching kit: Included
Battery charger: Optional
Trailer hitch kit: Included
Overall dimensions
Pack weight: 233 kg
Product length: 2338 mm
Product width: 880 mm
Product height: 1100 mm
Weight: 171 kg
5 Year Warranty (T&CS Apply)
Premium Service
We provide the following benefits when buying this model.
* Delivered fully assembled and ready to use (many of our competitors send you a box of bits)
* Full - Pre Delivery inspection, in accordance with the Manufacturers instructions.
* Fully test all controls and make adjustments as required.
* Adjust and tune the engine as required to ensure optimum performance..
* The product is palletised and wrapped securely to ensure it arrives in pristine condition.
* Free technical help, if there is any aspect of the product the you are un-sure about or there are any problems, we only a phone call away.
Delivery
We will contact you to arrange delivery and do our best to arrange delivery on a convenient day.
DELIVERY ONLY AVAILABLE WITHIN 60 Miles of Leeds (LS16)
After Sales
In the unlikely event that a fault developes on you machine, we will make arrangements for warranty repairs to be carried out as soon as possible.
Trailer Details
This Steel Dump Trailer is ideal for unloading soil, gravel and sand. It has a capacity of 500lbs and the trailer bed measures 148cm x 79cm x 68cm. It features a removable tailgate that aids loading and unloading and also easily converts into a flat-bed trailer with out the need for tools. Suitable to use with all makes of lawn tractor.
Specification
Warranty 1 year
Bed Dimensions 148cm x 79cm 68cm
Capacity Up to 500lbs/227kg
Tyres 13"/400 x 6 off-road pneumatic tyres
Suitable for most Ride on Lawn Tractors with a Tow Hitch.
