Features
Fabricated Cutting Deck
Every centimeter of the XZ3 122s heavy-gauge, welded steel cutting deck has been
engineered to make sure you get unsurpassed airflow, blade overlap, and quality of cut.
Every time.
Foot-operated deck lift system ensures smooth lifting and lowering of deck.
The deck has the SmartJet® deck wash system for ease of cleaning after mowing.

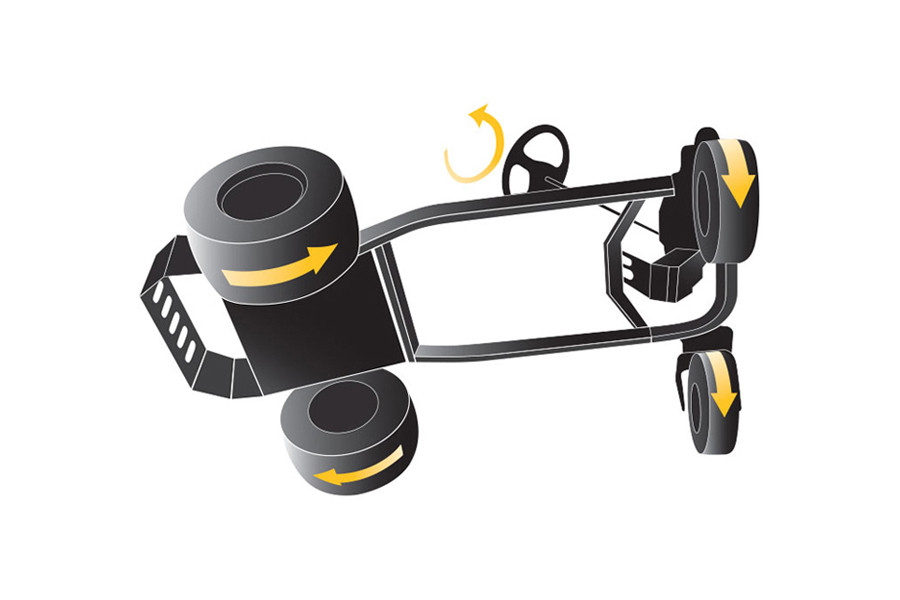

Synchro Steer® Technology
Innovative Synchro Steer® technology, the steering wheel controls both the front wheels and
the independently controlled rear wheels for better control, better stability, better results.
Youll be able to tackle tough terrain and steep hills quickly and easily with added traction
and control without damaging your turf.
Dual Hydrostatic Transmission
The dual hydrostatic transmission provides you with the highest manoeuvrability.
Side Deflector
Included is a practical side deflector for wide distribution so you can leave the grass on the lawn.
Pneuamtic Front Caster Wheels
Controllable pneumatic front castor wheels support the zero-turn of your Z-FORCE.
Anti-Scalping Deck Wheels
Anti-scalping wheels provide a professional quality finish by preventing damage to the lawn surface, particularly on tight turns.
Adjustable Steering Column
Quick adjustable steering column suits any operator's height. The tilting steering column tilts forward for easy access to the seating area.

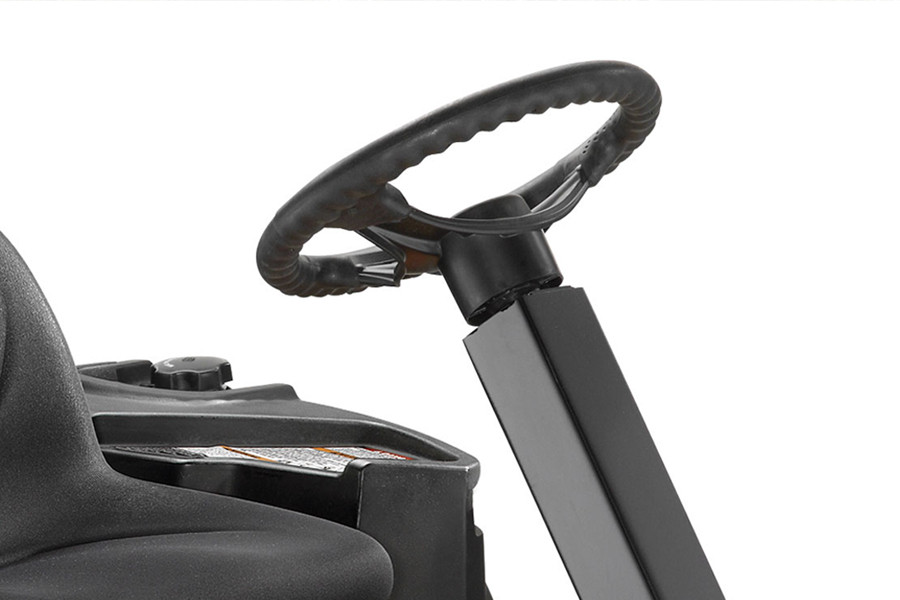

Soft Grip Steering Wheel
Soft grip steering wheel provides great control in tough conditions.
Chassis
The Z3 122 has a 1.5'' fully welded steel box frame which has been computer designed and tested for strength and rigidity to perform on all mowing terrains. The chassis is open for ease of servicing.
Engine
The XZ3 122 is powered by a professional grade Kawasaki® twin cylinder engine for premium performence and and longevity.
Comfort
The high-back seat with armrests adjusts to any operator providing superior support and comfort.
Warranty
Covered by three year manufacturer's warranty.
Specification
ENGINE XZ3 122
Engine Kawasaki OHV
Engine displacement (cm3) 726 cm³
Rated power (kW/min-1) 12.3 / 2,750
Cylinders V-TWIN dual cylinder
Fuel tank capacity(l) 17 l
Lubrication Full-pressure with spin-on oil filter
DRIVE SYSTEM
Transmission Dual Hydrostatic
Speed (max) Infinitely variable
Control Dual foot pedal control
Cruise Control
CUTTING SYSTEM
Mowing area (m2/h) 11.000 m²/h
Cutting width / Cutting height 122 cm (48 / 25 - 102 mm
Cutting options 3-in-1 Option
Number of blades 3
Deck Engagement Electric PTO
Deck height positions 15
Deck wheels 2
Wash nozzle / mulching plug Standard / Standard
DISCHARGE SYSTEM
Grass bag capacity (l) - / (19A70040100)
Deflector Standard
FRAME
Front bumper / Standard /
Turning radius (cm) Zero cm
Wheels (front/rear) 13'' x 5'' / 20'' x 10''
Wheel bearings Ball bearings
Easy entry frame Standard
ELECTRIC
Battery 12 V / 230 CCA
Headlights
Hourmeter / Serviceminder Standard
Safety systems Operator presence, brake switch, deck clutch switch
COMFORT
Seat type High back with armrests and gel suspension
Seat adjustment Quick adjuster lever
Steering wheel Comfort
Tool box / 12 V plug Standard
Mow in reverse Standard
Battery charger 196-967-678
DIMENSIONS
Noise values 93 / 103 / 105
Vibration value body (K-factor) (m/s2) 1 / 0.5 m/s²
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5 m/s²
Dimensions (L / W / H) (cm) 194 / 124 / 118
Weight net (kg) 312 kg
