Features
Strong V-Twin Kawasaki Engine
Kawasaki engine delivers superior power and higher torque. Smooth, powerful and reliable performance is on demand for whatever the job may be, from cutting through thicker grass to hauling heavy loads.
Unsurpassed Results of the Cub Cadet Signature
The advanced cutting system with optimal airflow, blade overlap and floating deck delivers a consistent, flawlesss, high quality cut.
Effortless Zero-Turning Capabilities
The dedicated dual hydrostatic rear-wheel transmission delivers effortless zero-turn control, synchronised with the steering to reduce turf damage. You get better performance and a better looking lawn.
Floating Cutting Deck
The floating deck follows the contours of the ground for superior cutting, providing a smoother and more uniform look.
Dual Hydrostatic Transmission
The dual hydrostatic transmission provides you with the highest manoeuvrability.

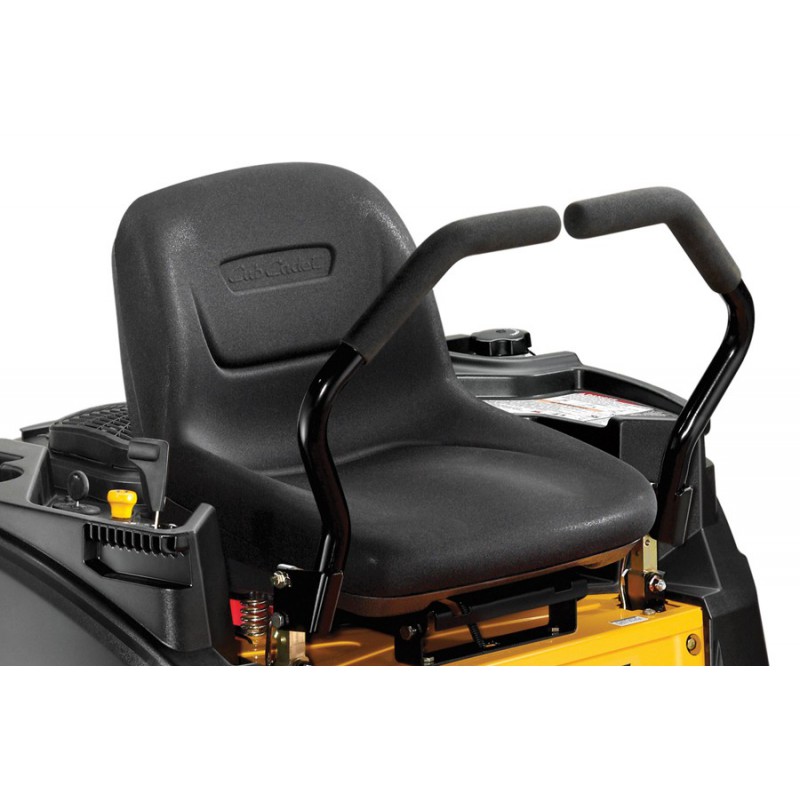

Comfortable E-PTO Deck Engagement
The electro-magnetic fingertip deck engagement provides highest user comfort.
Optional Hitch Plate
Optional tow hitch for easy attachment of the original Cub Cadet accessory program.
Easier Clean-Up
Although this machine is an exceptional mulcher, collection is an option with a 200 litre twin bag. The bagger attachment (which is available as an optional accessory) is easy to use and keeps your lawn looking great.
Specification
ENGINE XZ1 127
Engine Kawasaki OHV
Engine displacement (cm3) 726 cm³
Rated power (kW/min-1) 12.0 / 2,400
Cylinders V-TWIN dual cylinder
Fuel tank capacity(l) 10.5 l
Lubrication Full-pressure with spin-on oil filter
DRIVE SYSTEM
Transmission Dual Hydrostatic
Speed (max) Infinitely variable
Control Lap bars
Cruise Control –
CUTTING SYSTEM
Mowing area (m2/h) 11.500 m²/h
Cutting width / Cutting height 127cm (50'') / 38 - 100 mm
Cutting options 3 in 1 Option
Number of blades 3
Deck Engagement Electric PTO
Deck height positions 8
Deck wheels 4
Wash nozzle / mulching plug Standard / standard
DISCHARGE SYSTEM
Grass bag capacity (l) 200 l / (19A70043OEM)
Deflector Standard
FRAME
Front bumper / – / –
Turning radius (cm) Zero cm
Wheels (front/rear) 13'' x 5'' / 18'' x 9.5''
Wheel bearings Ball bearings
Easy entry frame Standard
ELECTRIC
Battery 12 V / 230 CCA
Headlights –
Hourmeter / Serviceminder Standard
Safety systems Operator presence
COMFORT
Seat type High back
Seat adjustment Quick adjuster lever
Steering wheel 2-way adjustable lap bars with comfort grips
Tool box / 12 V plug Standard
Mow in reverse –
Battery charger 196-967-678
DIMENSIONS
Noise values 93 / 103 / 105
Vibration value body (K-factor) (m/s2) 1 / 0.5 m/s²
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5 m/s²
Dimensions (L / W / H) (cm) 203 / 116 / 118
Weight net (kg) 265 kg
About Cub Cadet
Cub Cadet brands are founded on the company's commitment to building premium outdoor equipment that is better than anything in the industry and better than what its customers expect. Cub Cadet's impressive history is highlighted in these industry-leading innovations:
• Launched first zero-turn lawn tractor
• Engineered CycloCut™ system mowing deck
• Developed first steering wheel operated zero-turn lawn tractor
• First to use heavy-duty hydrostatic automatic transmission
• First - and only - lawn tractor brand with a direct shaft drive
Cub Cadet has always been guided by its dedication to meet - and exceed - the needs of rural and suburban homeowners and landscape professionals. Through a legacy of engineering excellence, it is able to offer a full line of best-in-class products:
Home Owner Products - Cub Cadet's focus is on enhancing the lifestyle of the homeowner and delivering products that are better, smarter, faster and simpler. Everything Cub Cadet offers the homeowner - lawn tractors, garden tractors, zero-turn tractors, walk-behind mowers, string trimmers, backpack blowers and more - is designed and built with these core features in mind.
Utility Vehicles - outdoor enthusiasts have come to recognise Cub Cadet's line of utility vehicles as the premier choice for the outdoor lifestyle. Cub Cadet builds its utility vehicles to be bigger, tougher and stronger so that owners can go deeper and farther into tough terrains.
Cub Cadet Yanmar® - exceeding expectations is the company's guiding principle. So it was only natural that Cub Cadet partners with another industry innovator - Yanmar, to create compact tractors that are like no other.
Cub Cadet Commercial® - when it comes to delivering premium products to landscape professionals and commercial cutters, Cub Cadet means business. It knows that these professionals need innovative equipment and services that help their business become more efficient, productive and profitable. Their success is also the success of Cub Cadet.
