Features
Strong V-Twin Kawasaki Engine
Kawasaki engine delivers superior power and higher torque.
Push Button Start
Electronic push button starting makes easy and reliable ignition, start after start.
V-Belt
Super stable belt-drive system for powerful drive force.
Stronger Options
Extra-tough stamped deck plus an advanced cutting system built with rugged components ensure unbeatable durability, breakthrough bagging performance, and of course, the beautiful Cub Cadet Signature Cut.
"All-Ground-Traction" System
Optimum traction on all surfaces thanks to mechanical differential lock.
Tight Turn
38cm turning circle for superior manoevrability around obstacles in the lawn.
Direct Collect / Electric Bag Lift
All rear discharge lawn tractors are designed to transport clippings into the collection bag in the shortest way. Electric bag lift means emptying couldn't be easier.
Largest Collection Bag on the Market
Huge 360 litre capacity collection bag makes collection effective and efficient.
Anti-Dust System
Rear discharge with multi-layer dust cover, protects against the grass and dirt swirling around.
Powerful Battery
Enhanced battery performance and significantly prolonged life.
Deluxe Features

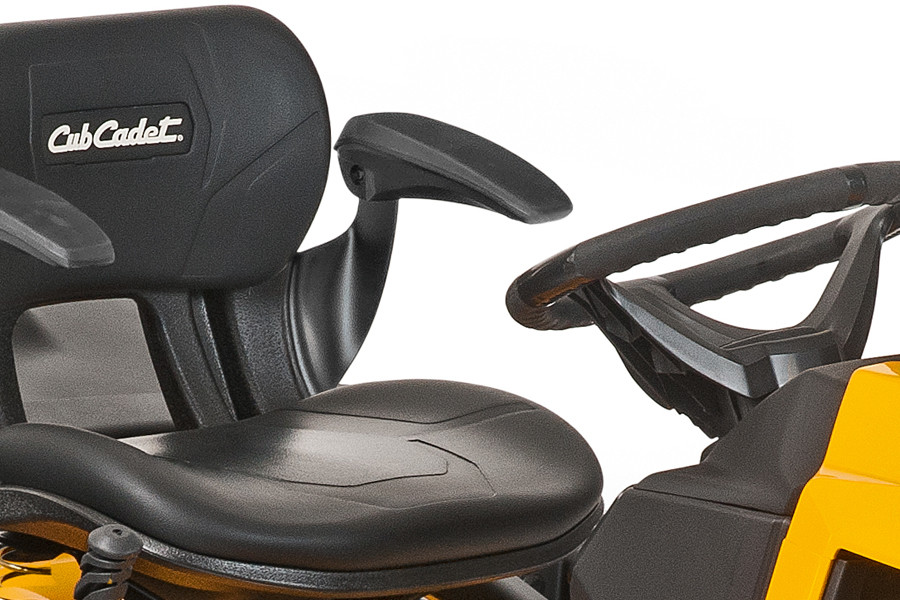

Rugged, low maintenance LED headlights, adjustable high-back seat with armrests, automatic transmission, cruise control and deck-wash nozzle all standard.
Cub Connect Bluetooth App
Smartphone App keeps a track of inspections and servicing.
Worry-free maintenance reminders
Convenient maintenance record log
Seamless product registration
Step-by-step instructions for routine maintenance
Easy to find Cub Cadet Service Centres
One-tap calling to Customer Service
Quick access to operator's manuals
Simple replacement part reference guides
Cub Cadet Three Year Warranty
Cub Cadet now offers a three year warranty for domestic use on all its lawn tractors.
Specification
ENGINE XT3 QR106e
Engine Kawasaki
Engine displacement (cm3) 726
Rated power (kW/min-1) 16.9 / 2,300
Cylinders V-Twin
Fuel tank capacity(l) 11.4
Lubrication Fully pressurised with spin on oil filter
DRIVE SYSTEM
Transmission Hydrostatic
Speed (max) Infinitely variable
Control Foot pedal control
Cruise Control Standard
CUTTING SYSTEM
Mowing area (m2/h) 8,000 m²/h
Cutting width / Cutting height 106cm (42'') / 25-100 mm
Cutting options 3 in 1 Option
Number of blades 2
Deck Engagement Electric PTO
Deck height positions 12
Deck wheels 2 Ball / 2 Narrow
Wash nozzle / mulching plug Standard / Accessory available Kit (196-550-000) & Blades (196-560-000)
DISCHARGE SYSTEM
Grass bag capacity (l) 360 l / -
Bag lever / hardtop Rounded ergo telescopic handle/ synthetic material
Bag full indicator Deluxe with Blade Shutoff/ Available as an accessory (196-552-000)
Grass bag capacity (l) 360 l / -
FRAME
Front axle Heavy-duty cast-iron
Front bumper Deluxe
Turning radius (cm) TIGHT TURN 38cm (15'')
Wheels (front/rear) 15 x 6 / 18 x 8.5
Wheel bearings Sleeve bearings
Easy entry frame Fully robotically-welded frame
ELECTRIC
Battery 12V Heavy-Duty
Headlights LED High Ilumination
System monitor package Cub Connect Bluetooth® App
Safety systems Neutral start, operator presence, brake pedal lock, RevTEK™ reverse mowing technology
COMFORT
Seat type High Back Seat Cub Cadet with armrests
Seat adjustment Lever, angled, 10 slide
Steering wheel Ergo Softgrip Black
Tool box / 12 V plug Standard / Standard
Mow in reverse Standard
Battery charger Accessory available (196-559-000)
DIMENSIONS
Noise values 88 / 98 / 100
Vibration value body (K-factor) (m/s2) 1 / 0.5
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5
Dimensions (L / W / H) (cm) 267 / 110 / 118
Weight net (kg) 268
About Cub Cadet
Cub Cadet brands are founded on the company's commitment to building premium outdoor equipment that is better than anything in the industry and better than what its customers expect. Cub Cadet's impressive history is highlighted in these industry-leading innovations:
• Launched first zero-turn lawn tractor
• Engineered CycloCut™ system mowing deck
• Developed first steering wheel operated zero-turn lawn tractor
• First to use heavy-duty hydrostatic automatic transmission
• First - and only - lawn tractor brand with a direct shaft drive
Cub Cadet has always been guided by its dedication to meet - and exceed - the needs of rural and suburban homeowners and landscape professionals. Through a legacy of engineering excellence, it is able to offer a full line of best-in-class products:
Home Owner Products - Cub Cadet's focus is on enhancing the lifestyle of the homeowner and delivering products that are better, smarter, faster and simpler. Everything Cub Cadet offers the homeowner - lawn tractors, garden tractors, zero-turn tractors, walk-behind mowers, string trimmers, backpack blowers and more - is designed and built with these core features in mind.
Utility Vehicles - outdoor enthusiasts have come to recognise Cub Cadet's line of utility vehicles as the premier choice for the outdoor lifestyle. Cub Cadet builds its utility vehicles to be bigger, tougher and stronger so that owners can go deeper and farther into tough terrains.
Cub Cadet Yanmar® - exceeding expectations is the company's guiding principle. So it was only natural that Cub Cadet partners with another industry innovator - Yanmar, to create compact tractors that are like no other.
Cub Cadet Commercial® - when it comes to delivering premium products to landscape professionals and commercial cutters, Cub Cadet means business. It knows that these professionals need innovative equipment and services that help their business become more efficient, productive and profitable. Their success is also the success of Cub Cadet.
