Features
Tightest Turning Circle with "Tight Turn xTreme"
Innovative turn technology delivers unsurpassed capability in tight spaces with a turning circle of only 17cms.
Incredibly Responsive Handling
The XT2's new steering system delivers optimised command and control at every turn.
A Powerful New Addition to the XT Enduro Series: The Cub Cadet EFI Engine Designed for Top Efficiency
Lower fuel costs (uses up to 25% less than carburetor engines that deliver comparable performance) saving you both time and money when you refuel.
Large engine displacement for miles of mowing power: 679cc
Engine no longer requires a manual choke. Simply take a seat, push the start button and get mowing.
Improved driving characteristics (cold running performance, power consumption, no afterburning or continued running).
Less servicing required and reduced likelihood of warranty claims thanks to direct fuel injection. No carburetor to drain, so you save on maintenance.
Eco-friendly due to reduced emissions, fewer visible fumes
Simple troubleshooting and diagnostic system for direct fuel injection lets dealers service models faster.
Push Button Start
Electronic push button starting makes easy and reliable, start after start.
Hydrostatic Drive System
Smooth drive system - simply put your foot on the pedal and go.
Extremely Strong Drive System
Strongest belt drive system, even under extreme stress.
Drive Harmonisation
Smooth and efficient power delivery between the engine and transmission.
Market Leading Direct Collect with Optional Mulching and Rear Discharge
The pristine Cub Cadet Signature Cut™ produces the best cutting results in the shortest time. All rear discharge lawn tractors are designed to transport clippings into the collection bag in the shortest way.
Heavy Duty Cutter Deck
A new muscular cutting system features a stamped deck built with heavy duty materials for durability and reliability.
Push Button Blade Engagement
Electric PTO system activates the cutting blades safely and more efficiently.
Wide Adjustable Cutting Height Range
Quick and convenient with a wide adjustment range from 25mm to 100mm.

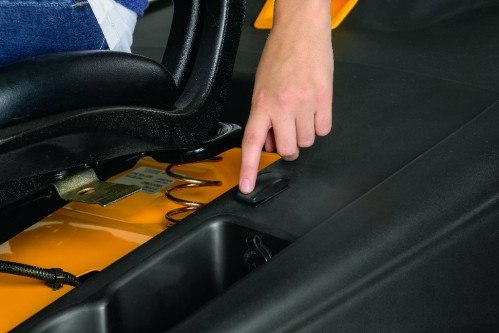

Electronic Bag Lift
The integrated bag full system identifies when the large 320 litre bag is at capacity, whilst the electronic bag lift means that emptying couldn't be easier.
RevTek™
Reverse mow system.
Adjustable Seat
Pure comfort for all users.
Cub Connect Blue Tooth App
Smartphone App keeps a track of inspections and servicing.
Worry-free maintenance reminders
Convenient maintenance record log
Seamless product registration
Step-by-step instructions for routine maintenance
Easy to find Cub Cadet Service Centres
One-tap calling to Customer Service
Quick access to operator's manuals
Simple replacement part reference guides
Cub Cadet Three Year Warranty
Cub Cadet now offers a three year conditional warranty for domestic use on all its lawn tractors.
Specification
ENGINE XT2 PR106ie
Engine Cub Cadet EFI
Engine displacement (cm3) 679
Rated power (kW/min-1) 16.5 / 2,150
Cylinders V-TWIN dual cylinder
Fuel tank capacity(l) 9.5
Lubrication Fully pressurised with spin on oil filter
DRIVE SYSTEM
Transmission Hydrostatic
Speed (max) Infinitely variable
Control Foot pedal control
Cruise Control Standard
CUTTING SYSTEM
Mowing area (m2/h) 8,000 m²/h
Cutting width / Cutting height 106cm (42'') / 25-100 mm
Cutting options 3 in 1 Option
Number of blades 2
Deck Engagement Electric PTO
Deck height positions 12
Deck wheels 2 Ball / 2 Narrow

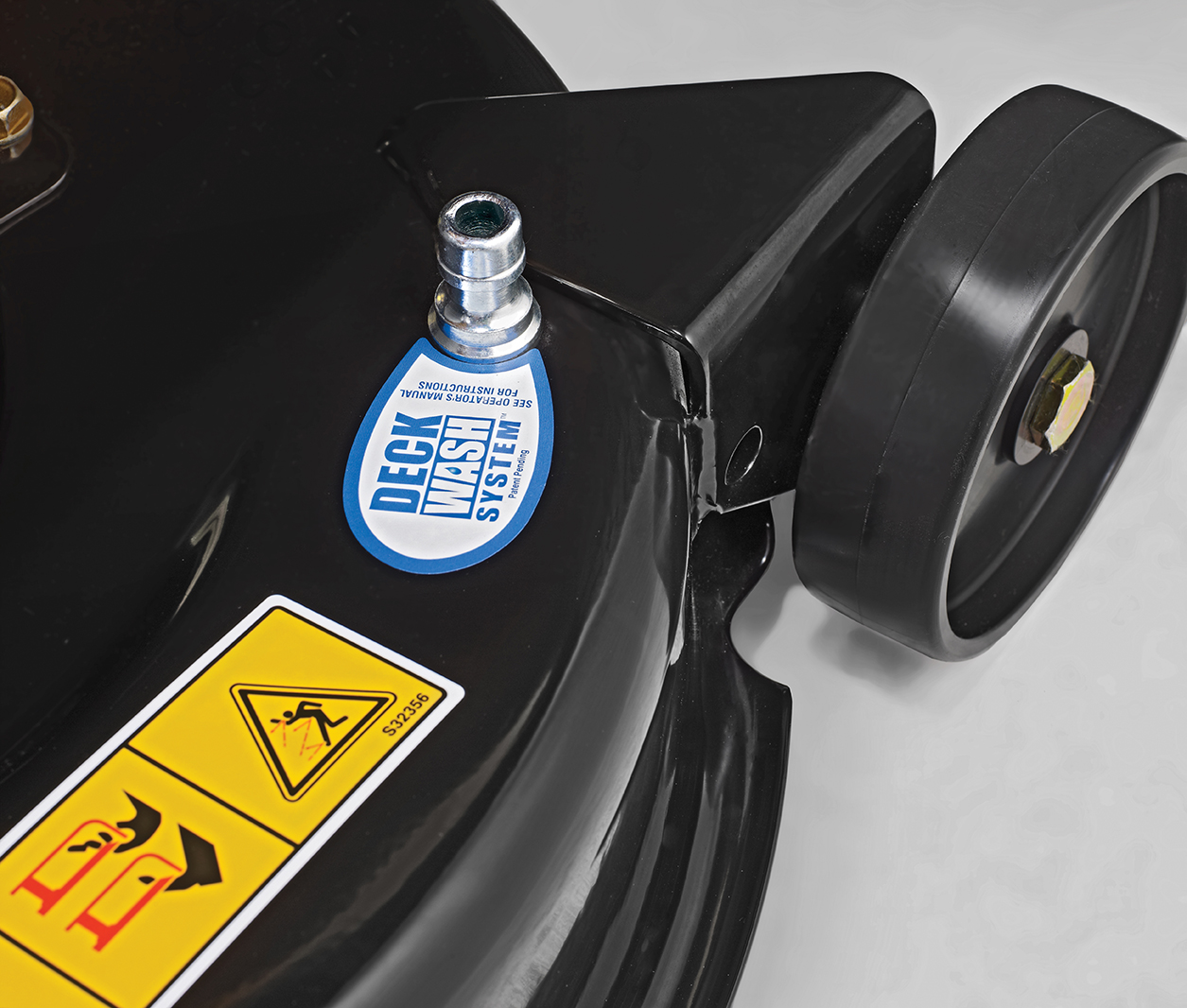

Wash nozzle / mulching plug Standard / Accessory available Kit (196-550-000) & Blades (196-560-000)
DISCHARGE SYSTEM
Grass bag capacity (l) 320 l / -
Bag lever / hardtop Electric / Plastic
Bag full indicator Standard / Accessory available (196-552-000)
Grass bag capacity (l) 320 l / -
FRAME
Front axle Heavy-duty cast-iron
Front bumper Single tube
Turning radius (cm) TIGHT TURN xTREME 17cm (6.6'')
Wheels (front/rear) 15 x 6 / 18 x 8.5
Wheel bearings Sleeve bearings
Easy entry frame Fully robotically-welded frame
ELECTRIC
Battery 12V Heavy-Duty
Headlights LED High Ilumination
System monitor package Cub Connect Bluetooth® App
Safety systems Neutral start, operator presence, brake pedal lock, RevTEK™ reverse mowing technology
COMFORT
Seat type High Back Seat Cub Cadet
Seat adjustment Lever, angled, 10 slide
Steering wheel Ergo Softgrip Black
Tool box / 12 V plug Standard / Standard
Mow in reverse Standard
Battery charger Accessory available (196-559-000)
DIMENSIONS
Noise values 88 / 98 / 100
Vibration value body (K-factor) (m/s2) 1 / 0.5
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5
Dimensions (L / W / H) (cm) 250 / 100 / 118
Weight net (kg) 253
