Features

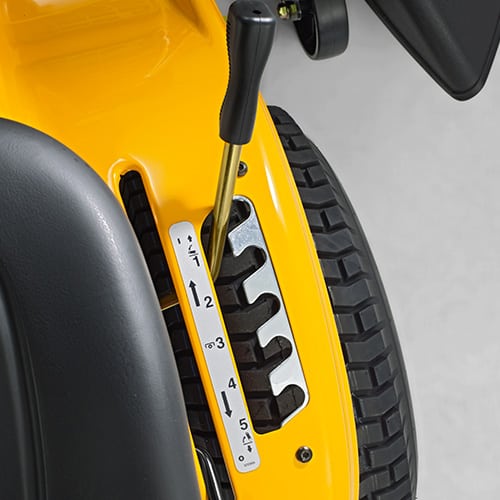

Cutting Height Adjustment
Five position height adjustment to easily change the cutting height.
Narrow Turning Radius
Cub Cadet Force Series lawn tractors have a tight turning radius of only 46cm / 18" for remarkable manoeuvrability.
RevTEK
Reverse mowing technology enables you to safely mow in reverse when no pets or animals are around.
Cast Iron Front Axle
The pivoting cast front axle keeps all four wheels on the ground on uneven ground.

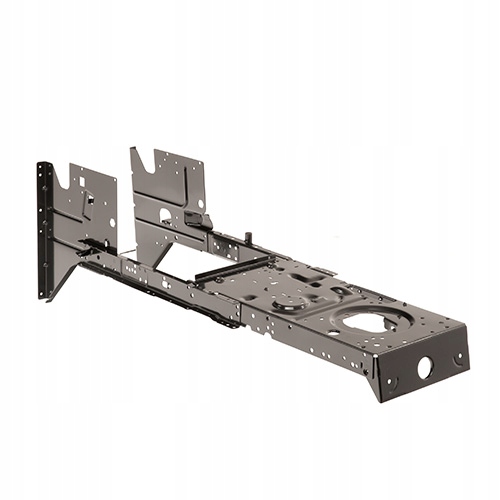

Steel Frame
All tractor frames are made of fully welded and powder coated rugged steel.

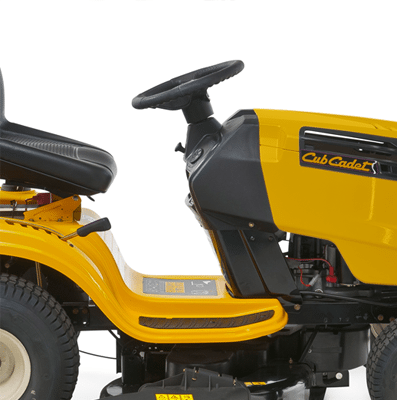

Step-Through Frame
The sturdy step-through frame allows the user to mount and dismount the tractor with ease.
Adjustable Seat
Adjustable seat for more convenience and comfort.
Comfort Steering Wheel
A nice three-spoke soft grip steering wheel is standard on all Cub Cadet lawn tractors.

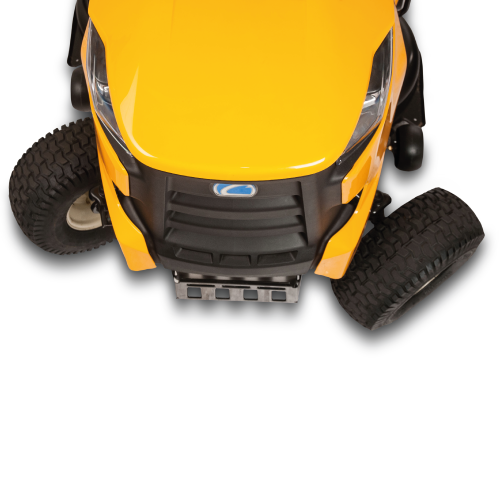

Pivoting One-Piece Hood
The entire bonnet can be removed within seconds, without the need for tools, for easy maintenance.
Briggs & Stratton Engine
Dependable and powerful Briggs & Stratton Intek V-Twin engine.
Hydrostatic Transmission
Hydrostatic transmission allows you to adjust your speed using the foot pedal, allowing both hands to remain on the steering wheel. Forward and reverse are also selected by the same pedal, meaning there are no gears at all to complicate the operation.
Cutting Deck
Twin-bladed offset deck features two anti-scalp wheels making it perfect for undulating areas
Side Discharge
The side discharge deck is ideal for informal areas of grass but, when used with the included mulch plug, is quite at home in more formal areas.
Anti-Scalping Deck Wheels
Deck wheels prevent damage to the lawn.
Deck Wash Port
Using a standard hose fitting connected to the deck, water can be run through while the deck is engaged to ensure it is clean and ready for your next cut.
Cub Cadet Three Year Warranty
Cub Cadet now offers a three year conditional warranty for domestic use on all its lawn tractors. New products must be registered within 60 days of purchase at https://b2c.cubcadet.eu in order to qualify.
Specification
ENGINE LT3 PS107
Engine BRIGGS & STRATTON Intek V-Twin
Engine displacement (cm3) 656
Rated power (kW/min-1) 12.5 / 2,800
Cylinders V-Twin
Fuel tank capacity(l) 3.8
Lubrication Fully pressurised with spin on oil filter
DRIVE SYSTEM
Transmission Hydrostatic
Speed (max) Infinitely variable
Control Manual lever control
Cruise Control –
CUTTING SYSTEM
Mowing area (m2/h) 5,500 m²/h
Cutting width / Cutting height 107cm (42'') / 30-95 mm
Cutting options 3 in 1 Option
Number of blades 2
Deck Engagement Manual lever control
Deck height positions 5
Deck wheels 2
Wash nozzle / mulching plug Standard / Standard
DISCHARGE SYSTEM
Grass bag capacity (l) Accessory available (OEM-190-180A)
Bag lever / hardtop – / –
Bag full indicator – / Standard
Grass bag capacity (l) Accessory available (OEM-190-180A)
FRAME
Front axle Cast-iron
Front bumper Standard
Turning radius (cm) 46cm / (18'')
Wheels (front/rear) 15 x 6 / 20 x 8
Wheel bearings Sleeve bearings
Easy entry frame Standard
ELECTRIC
Battery 12V Heavy-Duty
Headlights Standard
System monitor package –
Safety systems Neutral start, operator presence, brake pedal lock, RevTEK™ reverse mowing technology
COMFORT
Seat type High back
Seat adjustment Quick adjuster lever
Steering wheel Comfort
Tool box / 12 V plug –
Mow in reverse Standard
Battery charger Accessory available (196-967-678)
DIMENSIONS
Noise values 88 / 98 / 100
Vibration value body (K-factor) (m/s2) 1 / 0.5
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5
Dimensions (L / W / H) (cm) 170 / 115 / 100
Weight net (kg) 175
