Cub Cadet LR2 NS76 Mini Rider Ride on Mower 76Cm Cut S/D Hydro

Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro
Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro   - view 1Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro   - view 2Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro   - view 3Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro   - view 4
Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro   - view 5Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro   - view 6Cub Cadet LR2 NS76 Mini Rider Ride on Mower  76Cm Cut  S/D  Hydro   - view 7

Cub Cadet LR2 NS76 Mini Rider Ride on Mower 76Cm Cut S/D Hydro

Ask a question about this item

Our Price:2,049.00 (Inc VAT at 20%)




Cub Cadet LR2 NS76 Mini Rider Ride on Mower 30"/76Cm Cc S/D Hydro Electric Start The LR2 NS76 Force Series mini-rider has a 76cm / 30" cutting deck width and is powered by a 420cm3 Cub Cadet engine and a hydrostatic transmission drive system.

Thanks to the compact design, this Mini-Rider is able to get through typical garden grass with ease and with the easy entry step-through frame design and 46cm turning radius, this machine is as easy to use as it is manoeuvrable. Choose between side discharging the grass clippings or mulching kit (included as standard) or with the addition of the optional 115 L grass collection bag, the clippings can be collected as well.

{Features}
Hydrostatic Transmission
The smooth hydrostatic drive features a brake on the left and accelerator on the right. The foot pedals are rubberised to provide good grip for safer driving, even in poor conditions.

Cub Cadet Engine
The powerful and reliable Cub Cadet single cylinder engine has enough power to handle any situation. With OHV technology, the cast iron cylinder, the ball bearing crankshaft, electronic ignition and many other modern features, this engine is a reliable and long-lasting power source for the minirider.

76cm (30") Cutter Deck
Mulch or side discharge, Whatever you choose, the mini rider manages it with excellent performance.

Large Tyres
Wide tyres are gentle on the lawn yet still grippy, even on undulating terrain.

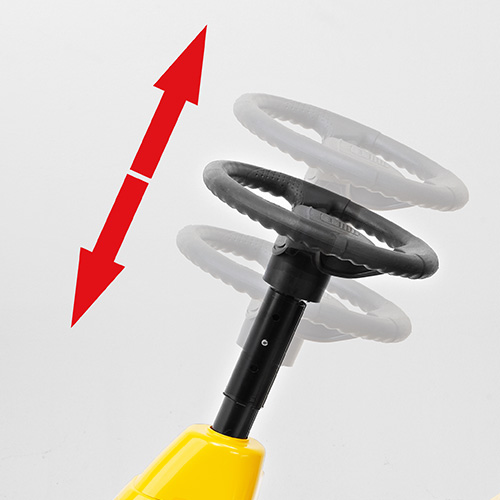

Telescopic Adjustable Steering Wheel
The rubberised steering wheel provides maximum comfort, whilst the steering column is height adjustable to suit the size of the driver.

Cutting Height Adjustment and Blade Engagement
The cutting height is easily adjustable in five positions from 38mm to 95mm. Both levers are conveniently located to the right of the seat.

Adustable Seat
The seat can be adjusted to the most comfortable sitting position. The high back rest is designed for better air circulation.

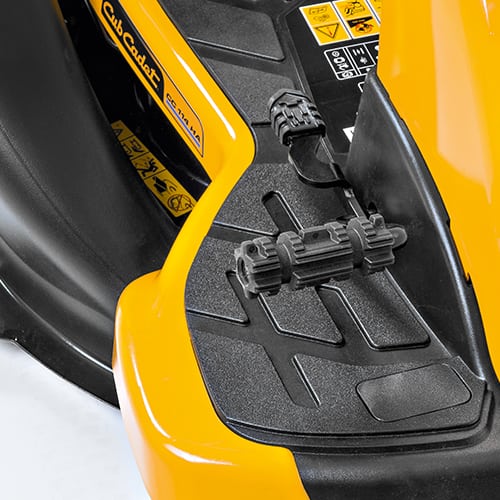

Step-Through Design
Convenient step-through design with anti-slip mat for easy mounting and dismounting of the machine.

Intelligent Parking Assistance (IPA)
With the brand new IPA system, it will be much easier to park your mini rider in your garage or garden shed. The intelligent system decreases the speed of your machine by 50 per cent and gives you a much safer feeling and much more precision when driving backwards.

Warranty
Cub Cadet backs its mini riders with a three year conditional manufactuer's warranty for domestic use.

{Specification}
ENGINE LR2 NS76
Engine Cub Cadet OHV
Engine displacement (cm3) 420
Rated power (kW/min-1) 8.2 / 2,650
Cylinders Single
Fuel tank capacity(l) 4.9
Lubrication Fully pressurised with spin on oil filter
DRIVE SYSTEM
Transmission Hydrostatic
Speed (max) Infinitely variable
Control Foot pedal control
Cruise Control –
CUTTING SYSTEM
Mowing area (m2/h) 3,000 m²/h
Cutting width / Cutting height 76cm (30'') / 38-95 mm
Cutting options 3 in 1 Option
Number of blades 1
Deck Engagement Manual lever control
Deck height positions 5
Deck wheels –
Wash nozzle / mulching plug Standard / Standard
DISCHARGE SYSTEM
Grass bag capacity (l) Accessory available - 115L (19A330014OEM)
Bag lever / hardtop - / -
Bag full indicator - / Standard
Grass bag capacity (l) Accessory available - 115L (19A330014OEM)
FRAME
Front axle Steel
Front bumper –
Turning radius (cm) 46cm (18'')
Wheels (front/rear) 13 x 5 / 16 x 6.5
Wheel bearings Sleeve bearings
Easy entry frame Standard
ELECTRIC
Battery 12 V wet battery 115 CCA

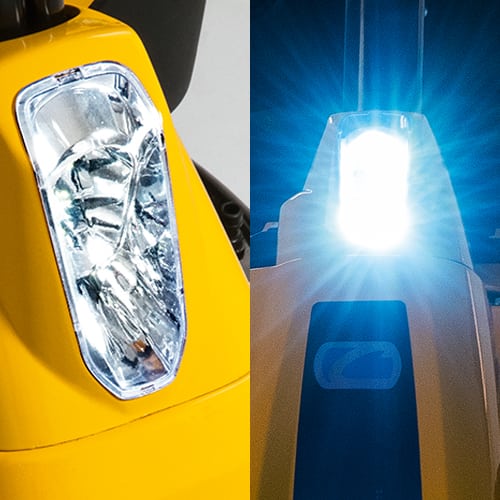

Headlights LED
System monitor package –
Safety systems Neutral start, operator presence, brake pedal lock
COMFORT
Seat type Deluxe High Comfort Seat
Seat adjustment Screw
Steering wheel Comfort
Tool box / 12 V plug – / –
Mow in reverse Standard
Battery charger Accessory available (196-967-678)
DIMENSIONS
Noise values 88 / 98 / 100
Vibration value body (K-factor) (m/s2) 1 / 0.5 m/s²
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5 m/s²
Dimensions (L / W / H) (cm) 157 / 85 / 112
Weight net (kg) 127
Warranty - 3 Years Domestic Use

{About Cub Cadet}
Cub Cadet brands are founded on the company's commitment to building premium outdoor equipment that is better than anything in the industry and better than what its customers expect. Cub Cadet's impressive history is highlighted in these industry-leading innovations:

• Launched first zero-turn lawn tractor
• Engineered CycloCut™ system mowing deck
• Developed first steering wheel operated zero-turn lawn tractor
• First to use heavy-duty hydrostatic automatic transmission
• First - and only - lawn tractor brand with a direct shaft drive

Cub Cadet has always been guided by its dedication to meet - and exceed - the needs of rural and suburban homeowners and landscape professionals. Through a legacy of engineering excellence, it is able to offer a full line of best-in-class products:

Home Owner Products - Cub Cadet's focus is on enhancing the lifestyle of the homeowner and delivering products that are better, smarter, faster and simpler. Everything Cub Cadet offers the homeowner - lawn tractors, garden tractors, zero-turn tractors, walk-behind mowers, string trimmers, backpack blowers and more - is designed and built with these core features in mind.
Utility Vehicles - outdoor enthusiasts have come to recognise Cub Cadet's line of utility vehicles as the premier choice for the outdoor lifestyle. Cub Cadet builds its utility vehicles to be bigger, tougher and stronger so that owners can go deeper and farther into tough terrains.

Cub Cadet Yanmar® - exceeding expectations is the company's guiding principle. So it was only natural that Cub Cadet partners with another industry innovator - Yanmar, to create compact tractors that are like no other.

Cub Cadet Commercial® - when it comes to delivering premium products to landscape professionals and commercial cutters, Cub Cadet means business. It knows that these professionals need innovative equipment and services that help their business become more efficient, productive and profitable. Their success is also the success of Cub Cadet.
