Features
Hydrostatic Drive System
The LR2 FR60 is equipped with a luxurious hydrostatic drive system, featuring the parking brake at the left side and the one-pedal foot control on the right side.
223cc Briggs & Stratton 1000 Series Engine
The powerful and reliable single cylinder Briggs & Stratton engine has more than enough reserves to provide you with sufficient force under any condition
Large Tyres
Gentle to your lawn and a smoother ride on uneven terrain, the large pneumatic tyres provide comfort, safety and confidence around the garden.

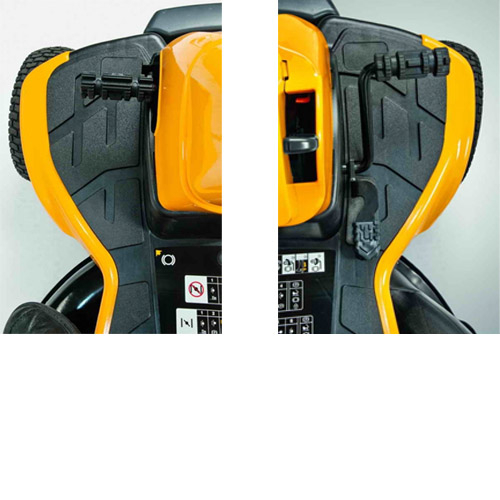

Step-through Frame
With soft rubber foot pads for easy access and comfortable foot rest.
Cutting Height Adjustment & PTO Clutch
The cutting height can easily be adjusted in five positions from 38mm to 95mm and, with the individual deck clutch lever, the cutting deck can be switched on and off. Both levers are ergonomically located on the right side of the seat for ease of use.
Standard Grass Collector
150 litre collection bag benefits from dust cover, dual handles and a bag full indicator. Easily emptied from the driver's seat
Protected Rubber Foot Pedals
Rubberised foot pedals provide good grip ensuring safe driving even in poor conditions.

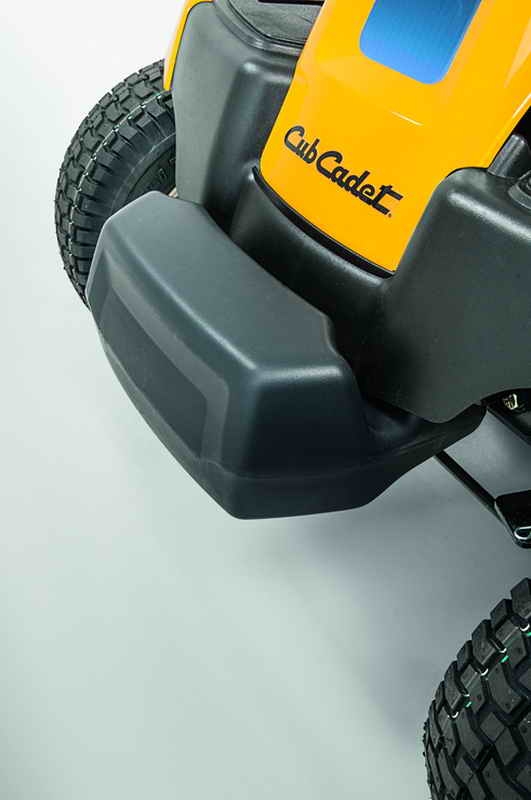

Front Bumper
The front bumper helps to prevent damage to your minirider and provides greater durability.
Intelligent Parking Assistance (IPA)
With the brand new IPA system, it will be much easier to park your mini rider in your garage or garden shed. The intelligent system decreases the speed of your machine by 50 per cent and gives you a much safer feeling and much more precision when driving backwards.
Warranty
Cub Cadet offers a three year domestic user warranty across the entire range of garden machinery.
Specifications
ENGINE LR2 FR60
Engine BRIGGS & STRATTON ELECTRIC START
Engine displacement (cm3) 223 cm³
Rated power (kW/min-1) 3.7 / 2,800
Cylinders Single
Fuel tank capacity(l) 1.2 l
Lubrication Fully pressurised with spin on oil filter
DRIVE SYSTEM
Transmission Hydrostatic
Speed (max) Infinitely variable
Control Foot pedal control
Cruise Control –

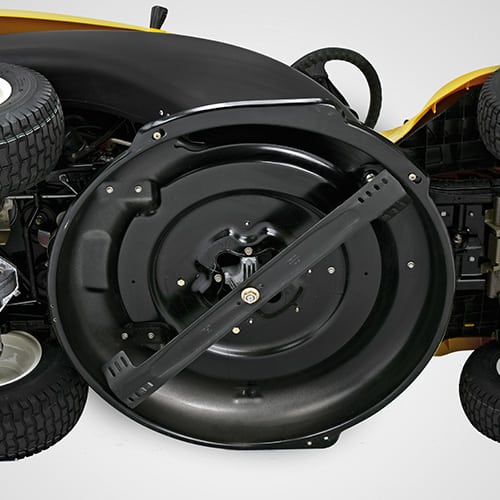

CUTTING SYSTEM
Mowing area (m2/h) 1,500 m²/h
Cutting width / Cutting height 60 cm (24'') / 38–95 mm
Cutting options 2-in-1
Number of blades 1
Deck Engagement Manual lever control
Deck height positions 5
Deck wheels –
Wash nozzle / mulching plug Standard / –
DISCHARGE SYSTEM
Grass bag capacity (l) 150 l
Bag lever / hardtop grip
Bag full indicator – / Optional
Grass bag capacity (l) 150 l
FRAME
Front axle Steel
Front bumper –
Turning radius (cm) 46 cm (18'')
Wheels (front/rear) 13 x 5 / 16 x 6.5
Wheel bearings Sleeve bearings
Easy entry frame Standard
ELECTRIC
Battery 12 V wet battery 4 Ah
Headlights –
System monitor package –
Safety systems Neutral start, operator presence, brake pedal lock
COMFORT

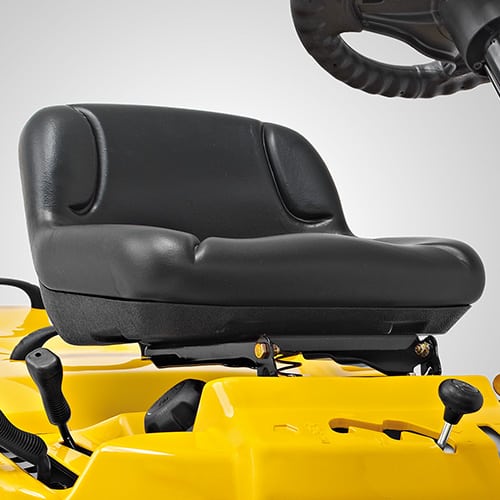

Seat type Deluxe High Comfort Seat
Seat adjustment Screw
Steering wheel Comfort
Tool box / 12 V plug – / –
Mow in reverse –
Battery charger –
DIMENSIONS
Noise values 88 / 96 / 98
Vibration value body (K-factor) (m/s2) 1 / 0.5 m/s²
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5 m/s²
Dimensions (L / W / H) (cm) 192 / 83 / 112
Weight net (kg) 189 kg
Warranty - 3 Year ( conditions apply )
