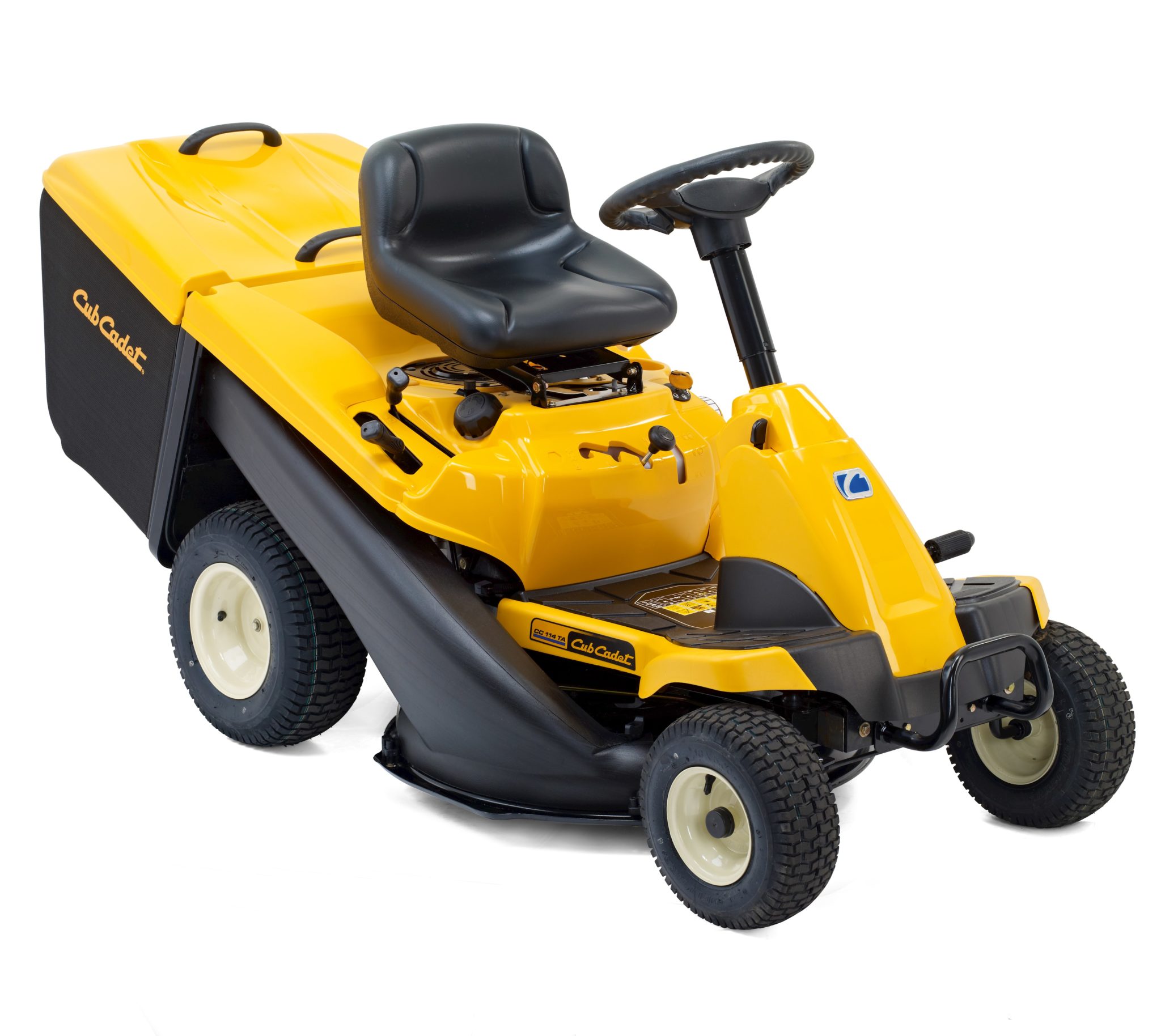

Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm

Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm
Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm      - view 1Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm      - view 2Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm      - view 3Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm      - view 4
Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm      - view 5

Cub Cadet LR1 MR76 Mini Rider Ride on Mower 76Cm

Ask a question about this item

Our Price:1,799.00 (Inc VAT at 20%)




Cub Cadet LR1 MR76 Mini Rider Ride on Mower Transmatic Electric Start. The LR1 NR76 is a comfortable Mini-Rider with fantastic features like the space-saving design, great agility and outstanding performance. Thanks to the space savings design, the LR Mini-Riders do not need much more space in your garage than a traditional walk behind lawnmower. This compact Mini-Rider with electric start is equipped with a powerful 420cc Cub Cadet engine and a 6 speed transmatic transmission allowing for shift-on-the-go speed control. The 3-in-1 functionality means that grass clippings can be collected, discharged or mulched.

{Features}

Transmatic Transmission
The transmatic transmission allows shift-on-the-go speed control.l Simply choose the driving direction, set the desired basic speed and start mowing. You have the choice of six forward and six reverse speeds.

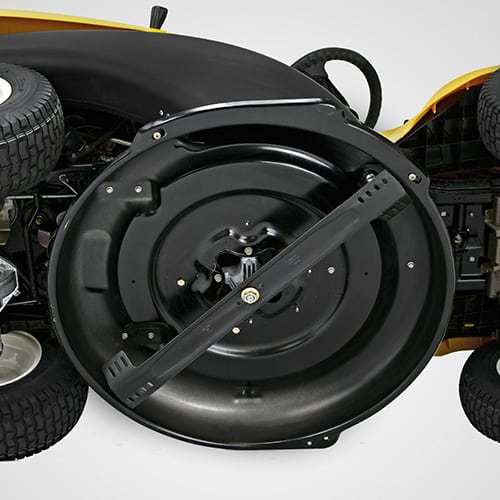

76cm 3-in-1 Mowing Deck
Choose between mulching, side discharge or direct collection.

420cc Cub Cadet OHV Engine
The powerful and reliable single cylinder Cub Cadet engine has more than enough reserves to provide you with sufficient force under any condition. The overhead valve technology, cast iron cylinder, ball bearings on the crankshaft, electronic ignition and many other state-of-the-art features make this engine a long-life and strong heart of the

Large Fuel Tank
The 4.9 litre fuel tank with fuel level indicator gives you the freedom to mow your lawn in one full cycle without having to refuel.

Large Tyres
Gentle to your lawn and a smoother ride on uneven terrain, the large pneumatic tyres provide comfort, safety and confidence around the garden.

Telescoping Steering Column
The soft-grip steering wheel offers maximum comfort. The steering shaft is height adjustable to suit operators of any height.

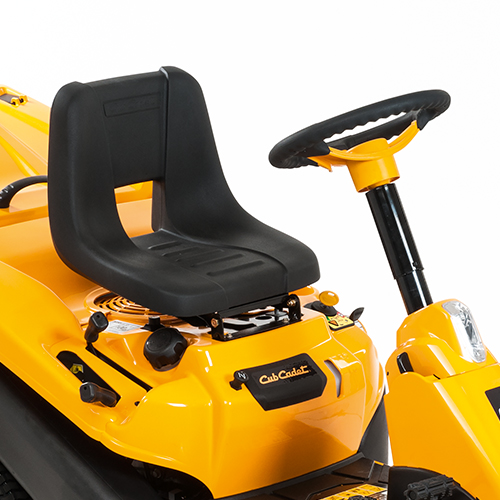

Adjustable Seat
Thanks to the adjustable seat, the mini rider can be matched to your personal and most comfortable seating position.

Step-through Frame
With soft rubber foot pads for easy access and comfortable foot rest.

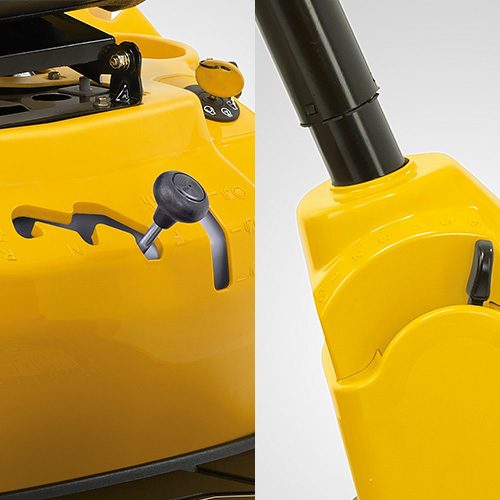

Cutting Height Adjustment & PTO Clutch
The cutting height can easily be adjusted in five positions from 30mm to 95mm and, with the individual deck clutch lever, the cutting deck can be switched on and off. Both levers are ergonomically located on the right side of the seat for ease of use.

Large Grass Collector
Rear discharge models are equipped with a grass bag as standard. The large grass bag has a hard top, soft handle grips and a handy bag full indicator. Conveniently it can be emptied from the driver's seat, saving time and effort.

Warranty
Cub Cadet offers a three year domestic user warranty across the entire range of garden machinery.

{Specifications}
ENGINE LR1 MR76
Engine Cub Cadet OHV
Engine displacement (cm3) 420
Rated power (kW/min-1) 8.2 / 2,500
Cylinders Single
Fuel tank capacity(l) 4.9
Lubrication Fully pressurised with spin on oil filter
DRIVE SYSTEM
Transmission Transmatic
Speed (max) 6 (f/r), shift on-the-go
Control Foot pedal control
Cruise Control –
CUTTING SYSTEM
Mowing area (m2/h) 2,500 m²/h
Cutting width / Cutting height 76cm (30'') / 38 - 95 mm
Cutting options 3 in 1
Number of blades 1
Deck Engagement Manual lever control
Deck height positions 5
Deck wheels –
Wash nozzle / mulching plug Standard / Standard
DISCHARGE SYSTEM
Grass bag capacity (l) Standard 200 l/(19A30014OEM)
Bag lever / hardtop Fixed grips / plastic
Bag full indicator Standard / standard
Grass bag capacity (l) Standard 200 l/(19A30014OEM)
FRAME
Front axle Steel
Front bumper Standard
Turning radius (cm) 46cm (18'')
Wheels (front/rear) 13 x 5 / 16 x 6.5
Wheel bearings Sleeve bearings
Easy entry frame Standard
ELECTRIC
Battery 12 V wet battery 115 CCA
Headlights LED
System monitor package –
Safety systems Neutral start, operator presence, brake pedal lock
COMFORT
Seat type Deluxe Comfort Seat
Seat adjustment Screw
Steering wheel Comfort
Tool box / 12 V plug – / –
Mow in reverse –
Battery charger Accessory available (196-967-678)
DIMENSIONS
Noise values 88 / 98 / 100
Vibration value body (K-factor) (m/s2) 1 / 0.5
Virbration value hand-arm (K-factor) (m/s2) 5 / 1.5
Dimensions (L / W / H) (cm) 225 / 86 / 112
Weight net (kg) 145

{About Cub Cadet}
Cub Cadet brands are founded on the company's commitment to building premium outdoor equipment that is better than anything in the industry and better than what its customers expect. Cub Cadet's impressive history is highlighted in these industry-leading innovations:

• Launched first zero-turn lawn tractor
• Engineered CycloCut™ system mowing deck
• Developed first steering wheel operated zero-turn lawn tractor
• First to use heavy-duty hydrostatic automatic transmission
• First - and only - lawn tractor brand with a direct shaft drive

Cub Cadet has always been guided by its dedication to meet - and exceed - the needs of rural and suburban homeowners and landscape professionals. Through a legacy of engineering excellence, it is able to offer a full line of best-in-class products:

Home Owner Products - Cub Cadet's focus is on enhancing the lifestyle of the homeowner and delivering products that are better, smarter, faster and simpler. Everything Cub Cadet offers the homeowner - lawn tractors, garden tractors, zero-turn tractors, walk-behind mowers, string trimmers, backpack blowers and more - is designed and built with these core features in mind.
Utility Vehicles - outdoor enthusiasts have come to recognise Cub Cadet's line of utility vehicles as the premier choice for the outdoor lifestyle. Cub Cadet builds its utility vehicles to be bigger, tougher and stronger so that owners can go deeper and farther into tough terrains.

Cub Cadet Yanmar® - exceeding expectations is the company's guiding principle. So it was only natural that Cub Cadet partners with another industry innovator - Yanmar, to create compact tractors that are like no other.

Cub Cadet Commercial® - when it comes to delivering premium products to landscape professionals and commercial cutters, Cub Cadet means business. It knows that these professionals need innovative equipment and services that help their business become more efficient, productive and profitable. Their success is also the success of Cub Cadet.
